Slim DisplayPort Single Display KVM over IP Transmitter - KE9900ST

Slim DisplayPort Single Display KVM over IP Transmitter - KE9900ST

Slim DisplayPort Single Display KVM over IP Transmitter

The KE9900ST Slim DisplayPort KVM over IP Extender is a compact and affordable high performance IP-based transmitter which can be paired with any KE Series* receiver for a savings solution that stays within budget. The KE Series* extenders allow access to a computer system from a remote USB console over an intranet enabling users to locate computers in a secure and temperature controlled environment which is isolated from users’ workstation.

The KE9900ST supports DisplayPort video input from the computer while the paired KE Series receiver supports DisplayPort DVI or HDMI monitor output providing video resolutions up to 1920 x 1200 and flawless and lossless video compression quality with minimal latency. The extender also supports RS-232 serial commands. In addition to a DC power jack the KE9900ST transmitter includes an extra DC terminal block for convenient installation.

The KE9900ST can be set on a desk mounted on a wall or at the rear of a rack with its space-saving 0U rack mount design. Moreover the KE9900ST can be used as a point-to-point/point-to-multipoint/multipoint-to-point extender or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM) providing more flexible applications in different working environments.

The KE9900ST can be configured through the KE Matrix Management Software or RS-232/Telnet text menu. The KE extender also offers enhanced security features such as supporting AES encryption for secured Video/Keyboard/Mouse/USB data transmissions and RADIUS/LDAP/AD or remote user authentication that provides an added layer of connection security.

When integrated with the KE Matrix Management Software and paired with the KE Series receiver the KE extender supports more advanced features such as boundless switching fast switching video wall multi display profile scheduling auto detection of all KE Series extenders on the same subnet for the sake of fast installation or configuration as well as username/password authentication and authorization. Please refer to the CCKM webpage for more details.

Whether you"re configuring monitoring administrating controlling or extending computer access the KVM over IP Matrix System is made adaptable to fit an endless variety of working environments and workstation settings as well as to provide solutions in broadcasting control center multimedia manufacturing and many other industries where matrix extending is required.

*Please visit www.aten.com for a comprehensive list of KE Series Extenders.

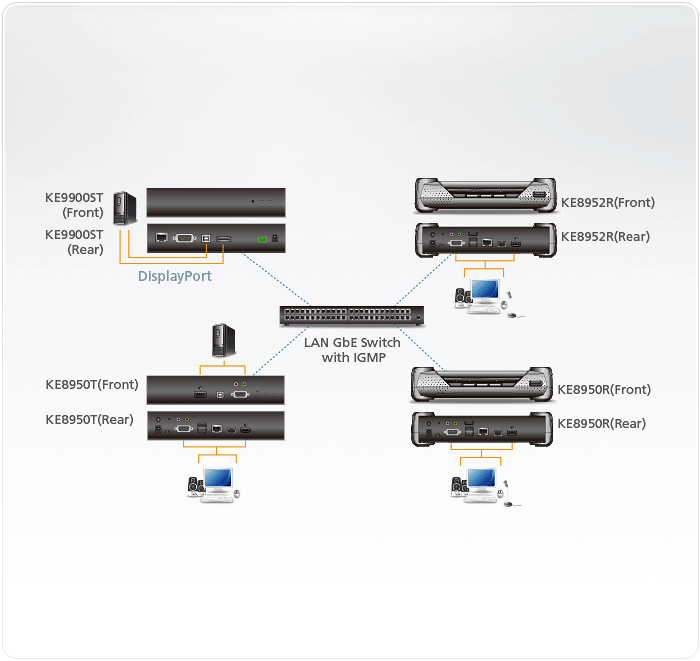

Diagram

 KE9900ST Diagram

Specifications

Connectors
KVM Ports 1 x USB Type B Female (White)
1 x DisplayPort Female (Black)
1 x DB-9 Female (Black)
Power 1 x DC Jack (Black)
1 x 3-Pole Terminal Block Connector (Green)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V:4.75W:22BTU
DC48V:6.97W:33BTU
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–95% RH Non-condensing
Physical Properties
Housing Metal
Weight 0.65 kg ( 1.43 lb )
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm
(7.17 x 4.63 x 1.13 in.)
£629.00 (Exc.VAT)
