1-Local /2-Remote Access
40-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200) - KN2140VA

1-Local /2-Remote Access
40-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200)

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN2140VA feature superior video quality with HD resolutions up to 1920 x 1200 FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the normal speed.

The KN Series provides a local console and remote over IP access for users to monitor and access their entire data center over a network.

Exclusive KN Series Features:
‧ High-grade security – supports FIPS 140-2 level 1 security standards
‧ 2x faster virtual media transmission speeds
‧ Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200

With dual on-board NICs and dual power supplies the KN Series is built for reliability to ensure 24/7 availability of remote access to all servers.

The KN Series can be integrated into ATEN"s CC2000 Management Software. CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing them to remotely monitor and control all devices on a network including blade server chassis individual blades and virtual machines.

Additional exclusive features of ATEN KVM over IP switches include: a Message Board Panel Array Mode™ Mouse DynaSync™ and the Adapter ID function.

ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and Mean Time To Repair (MTTR) costs and ensuring the highest availability for data center services.

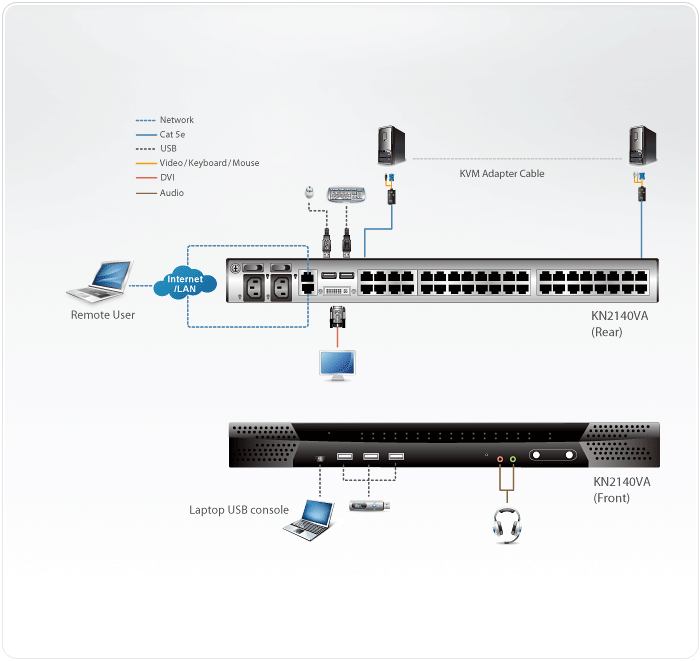

 KN2140VA Diagram


Computer Connections
Direct 40
Maximum 512 (via Cascade KVM Switches)
Console Connections
Local 1
Remote 2
Port Selection Pushbuttons Hotkeys GUI
Console Ports 2 x USB Type A Female (White)
1 x DVI-I Female (White)
KVM Ports 40 x RJ-45 Female (Black)
USB Port 3 x USB Female (Black)
Audio 2 x Audio Jack Female (Pink; Green)
Laptop USB Console (LUC) Port 1 x Mini-USB Female (Black)
LAN Ports 2 x RJ-45 Female (Black)
Power 2 x IEC 60320/C14
Power 2 x Rocker Switches
Port Selection 2 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Online / Selected 40(Green/Orange)
Power 2 (Blue)
Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
Keyboard / Mouse PS/2; USB
Local 1920 x 1200 @ 60Hz
Remote 1920 x 1200 @ 60Hz
Maximum Input Power Rating 100–240V~ ; 50-60Hz; 1A
Power Consumption
Single Power 110V/45.87W; 220V/44.66W
Dual Power 110V/22.99W; 220V/22.88W (per input)
Scan Interval 1 – 255 Sec
Operating Temperature 0 - 40?C
Storage Temperature -20 - 60?C
Humidity 0 - 80% RH Non-condensing
Physical Properties
Housing Metal
Weight 5.54 kg ( 12.2 lb )
Dimensions (L x W x H) 43.36 x 41.21 x 4.40 cm
(17.07 x 16.22 x 1.73 in.)
