HDMI KVM over IP Console Station
The KVM over IP Console Station KA8280 is a standalone console that replaces PC or NB enabling users to remotely access monitor and control all servers connected to multiple ATEN’s KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required ideal for applications such as studios offices data centers broadcast stations control rooms or network operations centers (NOC).
The KA8280 supports USB mouse/keyboard and two USB ports for Virtual Media function and supports 1 HDMI video output at resolutions up to 1920 x 1200 @ 60 Hz.
In addition the KVM over IP Console Station provides Panel Array Mode™ function enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.
The KVM over IP Console Station can be set on a desk mounted on a wall or at the rear of a rack with its spacesaving 0U rack mount design. It is flexible and easy to install and provides a GUI with multi-language interface for device management user profile customization as well as hassle-free configuration for large deployments.
*Compatible KVM over IP switches include KN1132V KN2116VA KN4116VA KN2132VA KN4132VA KN4164V KN8132V KN8164V KN2124VA KN4124VA KN2140VA and KN4140VA. The aforementioned KVM over IP switches require FW v1.6.151 or above to support the KVM over IP Console Station

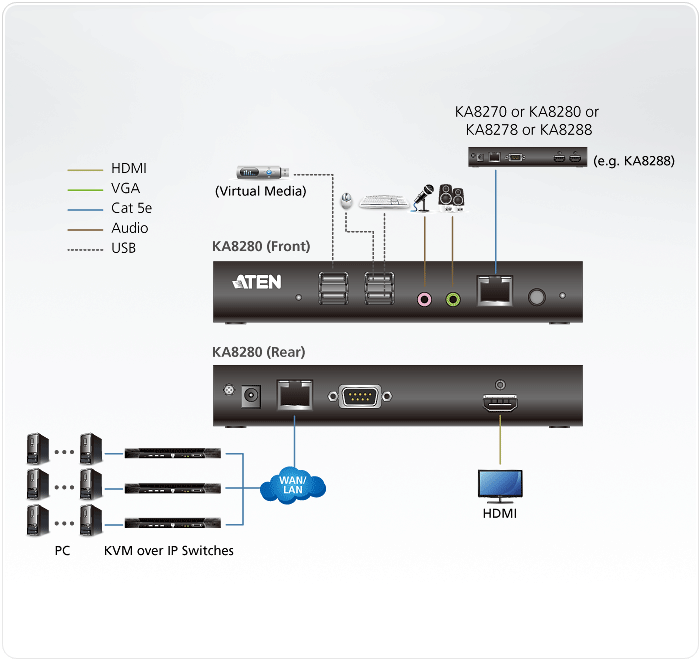

Diagram
Specifications
| Connectors |
| Video |
1 x HDMI Female |
| RS-232 |
1 x DB-9 Male |
| Power |
1 x DC Jack |
| Audio |
2 x Audio Jack Female |
| LAN Ports |
1 x RJ-45 Female |
| Keyboard |
1 x USB Type-A Female |
| Mouse |
1 x USB Type-A Female |
| USB Port |
2 x USB Type-A Female |
| Cascade Port |
1 x RJ-45 Female |
| LEDs |
| Power |
1 (Blue) |
| Switches |
| Power |
1 x Push button |
| Reset |
1 x Semi-recessed Push button |
| Video |
1920 x 1200 @ 60Hz |
| Power Consumption |
DC 5V:4.66W:47.44BTU |
| Environmental |
| Operating Temperature |
0 -40°C |
| Storage Temperature |
-20 - 60°C |
| Humidity |
0-80% RH Non-condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
0.75 kg ( 1.65 lb ) |
| Dimensions (L x W x H) |
17.42 x 15.54 x 2.88 cm
(6.86 x 6.12 x 1.13 in.) |
