ATEN Control System - 12-button Keypad (EU 2 Gang)
The VK112EU is a fully-customizable 12-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the VK2100/VK1100 Control Box over a LAN users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK112EU is an affordable solution perfect to serve as the primary interface in meeting rooms or as secondary device control in classrooms and conference centers.
Keypad Layout Example
Custom button placement on the keypad can be set in 125 different combinations of 6 to 12 buttons. The example above shows the 12 most commonly used.

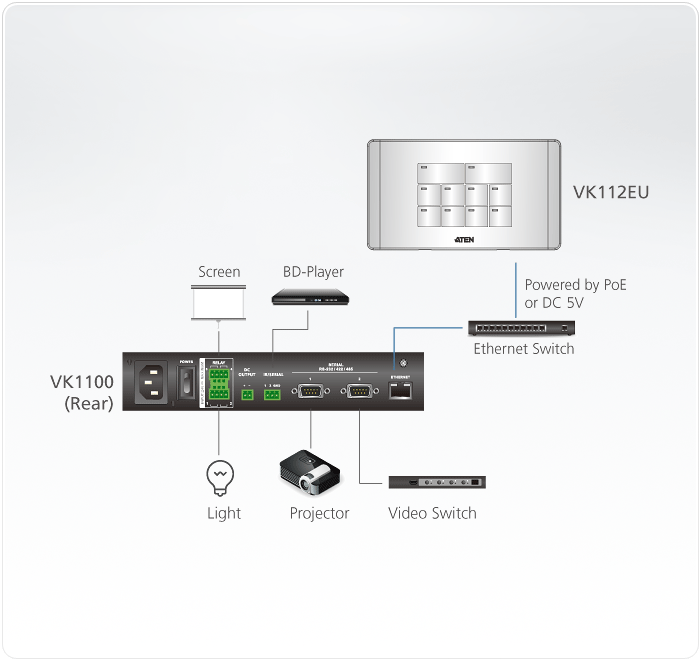

Diagram
Specifications
| Interfaces |
| Ethernet |
• 1 x RJ-45 Female 10/100Base-T
• Supported Protocol: ICMP TCP/IP DHCP HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0 |
| Keypad Layout |
6~12 buttons customizable in 125 keypad layouts |
| Switches |
| Controller ID |
1 x 16-segment Switch |
| Keypad ID |
1 x 8-segment Switch |
| Reset Button |
1 x Semi-recessed Pushbutton |
| Power Consumption |
DC5V:1.25W:6BTU |
| Environmental |
| Operating Temperature |
0 – 50°C |
| Storage Temperature |
–20 – 60°C |
| Humidity |
0 - 80% RH Non-Condensing |
| Physical Properties |
| Housing |
Plastic
|
| Weight |
0.14 kg ( 0.31 lb ) |
| Dimensions (L x W x H) |
8.32 x 14.76 x 3.87 cm
(3.28 x 5.81 x 1.52 in.) |
| Faceplate Dimension (L x W x H) |
8.62 x 15.12 x 0.92 cm
(3.39 x 5.95 x 0.36 in.) |
