4-port USB 2.0 CAT 5 Extender (100m)
The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable high quality connection that harnesses the full capability of the USB 2.0 standard to ensure reliable data communication.
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device such as POS flash drives webcams scanners or printers etc.
A true plug-and-play solution the UCE32100 is compatible with all leading operating systems. With its durable metal housing this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition the compact size with wall mounting and din rail included enables space-saving installation.

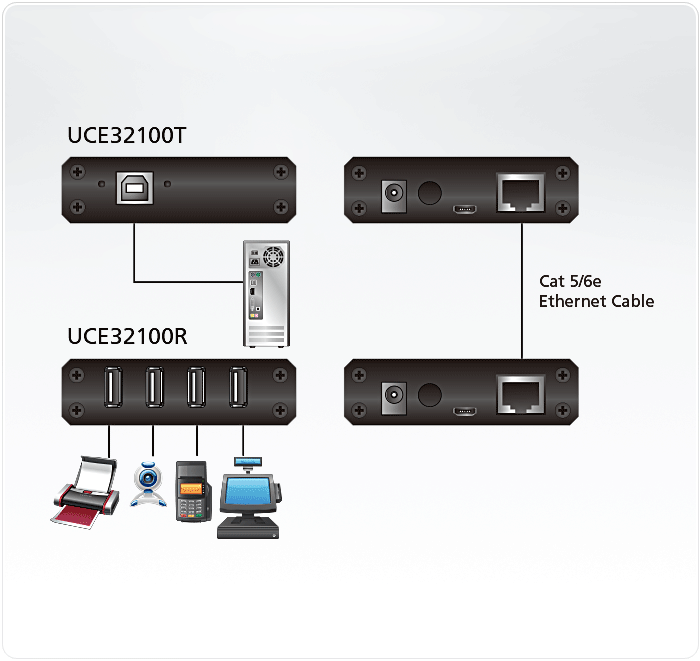

Diagram

Specifications
Local Unit |
Upstream Port |
1 x USB Type B Female |
Downstream Port |
1 x RJ45 Female 1 x Micro USB Female (Firmware Upgrade) |
Power |
1 x DC Jack |
Remote Unit |
Upstream Port |
1 x RJ45 Female |
Downstream Port |
4 x USB Type A Female 1 x Micro USB Female (Firmware Upgrade) |
Power |
1 x DC Jack |
USB Specification |
USB 2.0 High-Speed |
Cable Type |
CAT 5 UTP Cable |
Signal Range |
100m |
LEDs |
Status |
2 x LED |
Power Consumption |
DC5V:1.708W:8BTU DC5V:1.649W:50BTU |
Environmental |
Operating Temperature |
0°C to 50°C |
Storage Temperature |
-20°C to 70°C |
Humidity |
0–80% RH Non-condensing |
Physical Properties |
Weight |
0.21 kg ( 0.46 lb ) |
Housing |
Metal |
Dimensions (L x W x H) |
10.15 x 7.90 x 2.44 cm (4 x 3.11 x 0.96 in.) |
