10-Port 4K HDMI Splitter - VS0110HA

10-Port 4K HDMI Splitter - VS0110HA

10-Port 4K HDMI Splitter

The VS0110HA 4K HDMI Splitter is a perfect solution for applications that require sending one source of high-definition 4K video to ten displays at the same time. The HDMI interface caters to most mainstream sources and sinks such as DVD players satellite set-top boxes and any HDMI displays. Featuring ATEN EDID technology the VS0110HA guarantees continuous EDID communication with connected devices and maintains optimum video outputs.

The VS0110HA 4K HDMI Splitter is HDCP (High-bandwidth Digital Content Protection) compliant making it effective for use with all HDMI displays in home theater applications as well as in corporate educational and commercial settings.

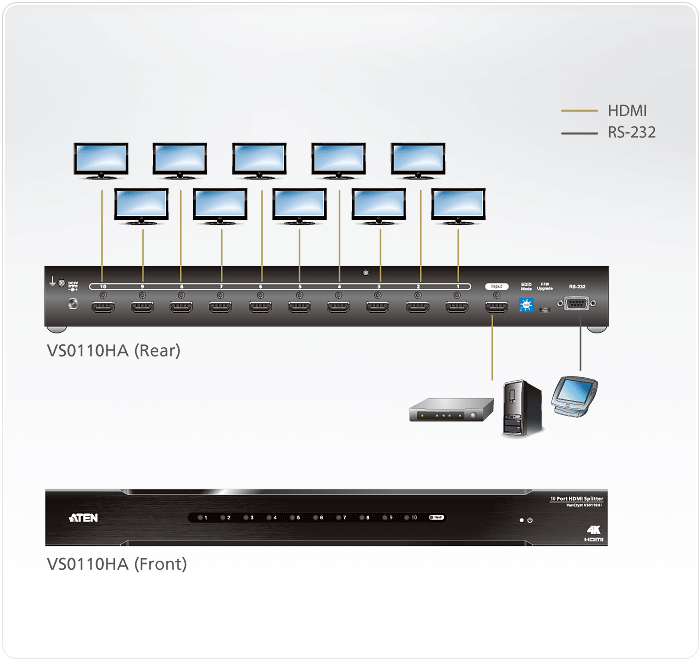

Diagram

 VS0110HA Diagram

Specifications

LEDs
Power 1 x LED (Green)
Input 1 x LED (Green)
Video Output 10 x LED (Green)
Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 5m (at 4K resolution)
Video Output
Interfaces 10 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 10m (at 4K resolution)
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI 1.4 (3D Deep Color 4K);
HDCP 1.4 Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200 / Data Bits: 8 / Stop Bits:1 / Parity: No / Flow Control: No
EDID Settings EDID Switch x1
EDID Mode: Default (1080p) / Port 1 / Auto
Connectors
Power 1 x DC Jack
USB Port 1 x Micro USB (FW upgrade)
Power Consumption DC5V:4.34W:20BTU
Environmental
Operating Temperature 0 - 40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH Non-Condensing
Physical Properties
Housing Metal
Weight 2.10 kg ( 4.63 lb )
Dimensions (L x W x H) 43.72 x 15.78 x 4.40 cm
(17.21 x 6.21 x 1.73 in.)
Carton Lot 3 pcs
£299.00
